Facet Red Top Electric Fuel Pump Kit - Competition 480532 Pump Box Kit
With 8mm tails [for 8mm internal diameter fuel hose]

Compatible with gasoline, diesel, biodiesel, blended alcohol fuels and fuel additives. This is the new enhanced version of the Interrupter model. It has Solid State circuitry and will meet or exceed all performance specifications and is totally interchangeable.

An industry standard for over 60 years, these lightweight compact pumps can be found in almost every conceivable application. With output ranges up to 170.3 litres/hour, .68 bar, these pumps will provide high-performance output for everything from racing cars to heavy duty agricultural and construction machinery. E10/E85/Diesel Compatible.

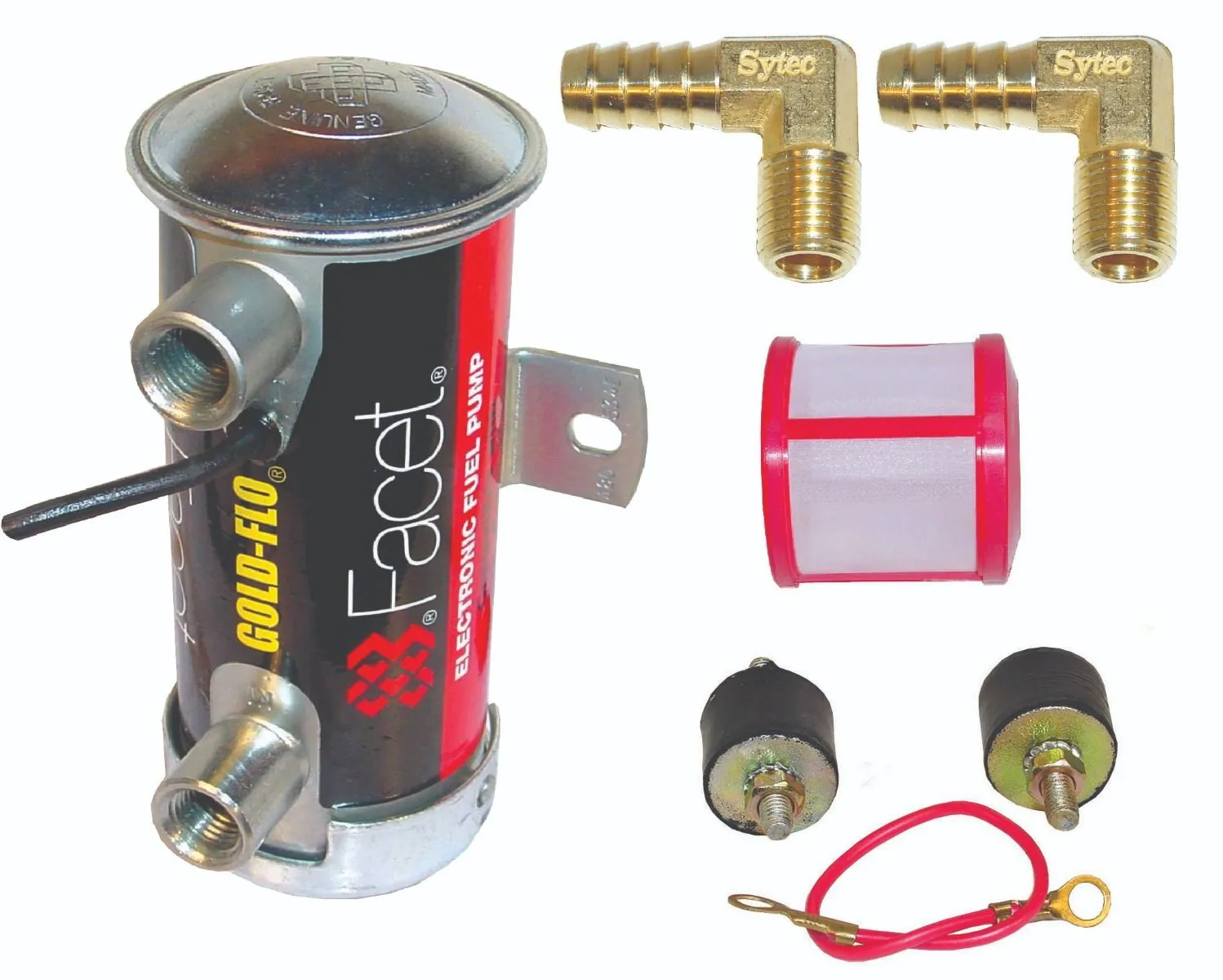

Contents

1x Pump (480532E)
2x 10mm 90 Degree Union
1x Facet Mounting Kit
1x Spare Filter

Specification
Pump:- 480532E
Voltage:- 12v
Earth:- Neg
Pressure (Psi):- 6.0-8.0
Flow:- US Gallons/Hr 40 = 151lt/Hr.
Dry Prime Height in Mtrs:- 0.6
Thread Size:- 1/4 nptf
Operating Temperature:- -40 to 180 F (all Models)

Legal Requirements:- Certified & Complies With EEC 95/54 Requirements

Length:-140mm

Diameter:- 54mm

Weight:-0.7kg
