Name: Aqua-Flo XP2 2.5HP - 2-Speed Flo-Master - Spa Jet Booster Pump - NLS
SKU: 201076

OBSOLETE - with the Same Plumbing & Plug.

All Aquaflo XP2 pumps are discontinued. Use the link above for the best replacement. Replacement does not require plumbing changes.

Archived Info:

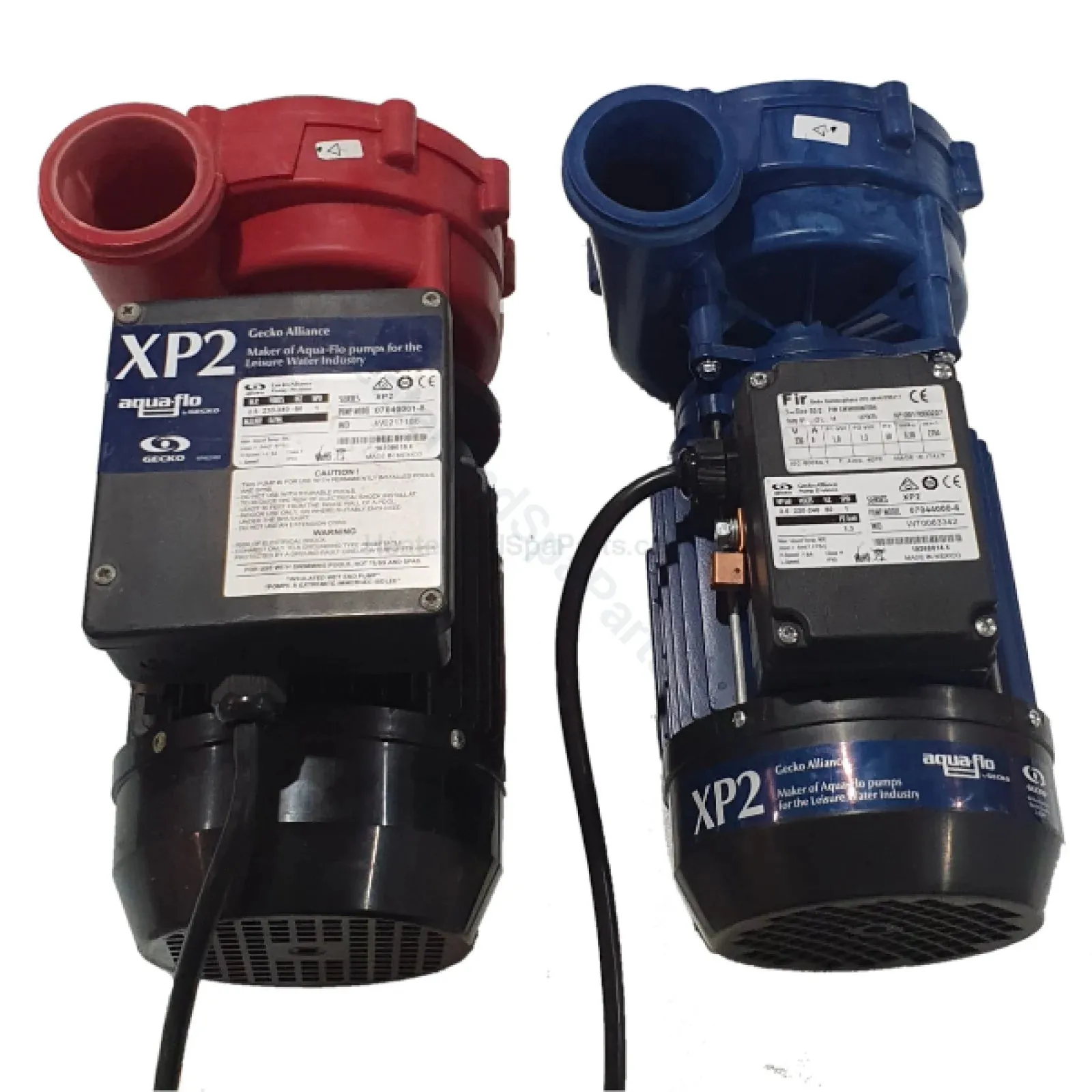

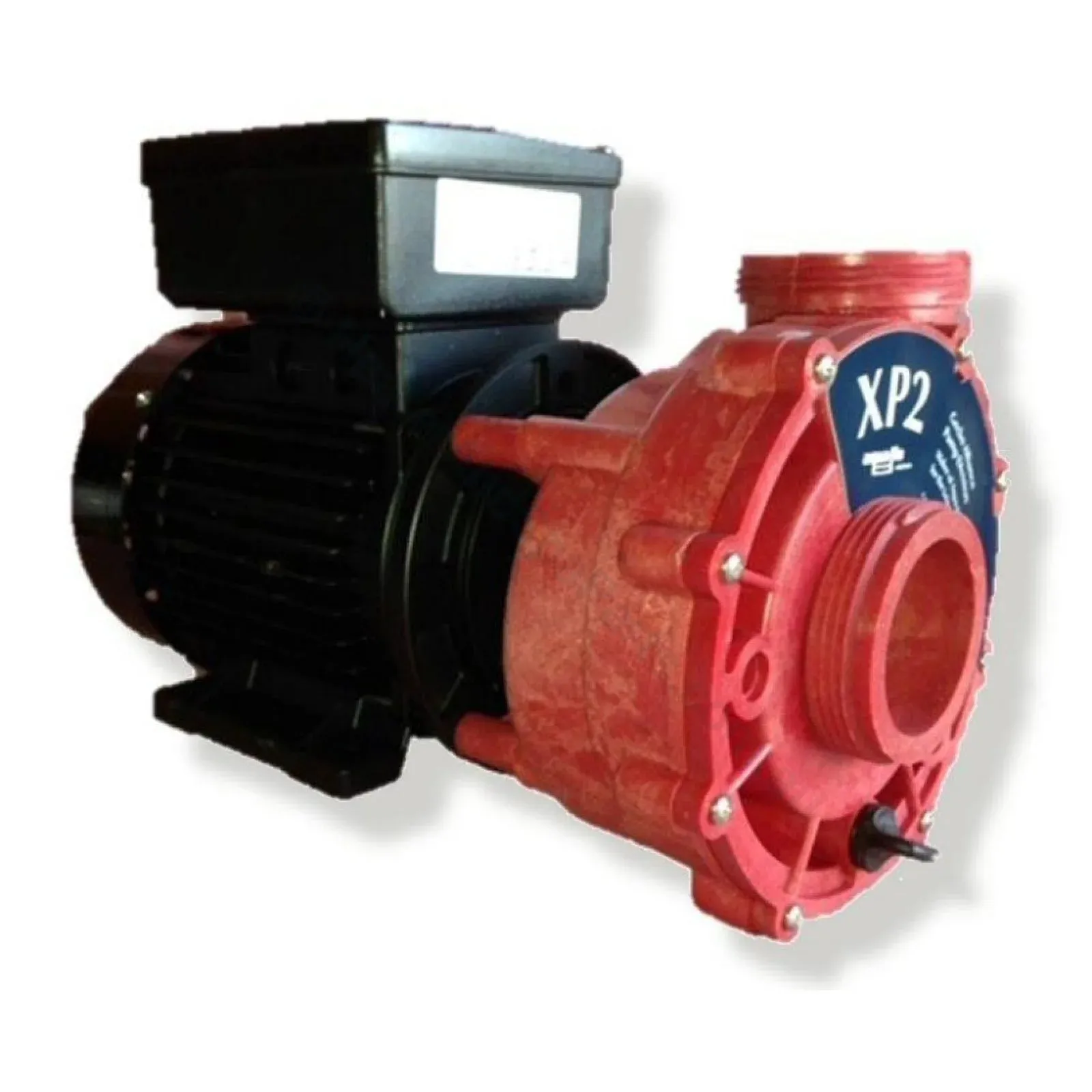

AquaFlo XP2 2 Speed Jet Booster Pump. Originally had a black wet-end. Some are sold with black, red, or blue wet-ends. This is by far the most common size on spas. Will have 4x wires going into the plug. If it only has 3x wires going into the plug it will be a .

Used on almost all Spa Industries Spas, Signature Spas, Cyclone Spas, Bullfrog Spas, Leisurite Spas, Lanark Spas, Heritage Spas, H20 Spas, Jazzi Spas, Sapphire Spas, and many others!

Your old pump may have these numbers:

APUM25252A, XP2-902524, Model: 06120176-1 Code: 01227P2-802024,Model: 07130011-6 Code: 08266,Model: 07140947-6 Code: 04315, Spa Industries APUM25252A, A-XP2-2502-AMP, XP2-902523, 93556595, 07130002-6, 07140005-6, 07140004-8, 07140004, XP2-902023

Supercedes all XP2 Pumps with the Century LASAR Pool/Spa Motor with AO Smith motors. Cat BN55 Part 7 - 186364-02, 186364-xx

Specifications:

Flo-master XP2
2.5HP - 1.9kW or 1.8kW
2.5HP - 50mm Std Fine Thread Unions
EMG Elettromeccanica Tipo/90 2/4
Aquaflo Flo Master Xp2 Ce 1p X 5
N659x95648 Ip45 Hz50 Kwo.37
Volt 220 To 240
Amp 8.3 Amp 1.5
RPM: 2850 - High Speed RPM / 1450 - Low Speed RPM
Height: 197-235mm
Flow Master
- measures ~78-79mm OD on pump

Notes about Horsepower Ratings:

Some Spa Manufacturers use a complicated & confusing form of Horsepower measurement that was more commonly used in the USA, called hydraulic horsepower (HP=PSI*GPM/1714). It gives a more impressive appearance, and may give a false impression of performance.
Standard Australian HP ratings are calculated purely on input power in Watts, which are then converted to HP. (1HP=745.7Watts).
You can always measure (with an Amp Meter) the input current and convert back to real HP.
Rough HP measurement can also be calculated using Ohm's Law (V=IR). These pumps also have an Amperage rating that can be roughly converted back to Watts, and then to Horsepower. The problem here, is some spa manufacturers used slightly misleading ratings here as well, eg, they'd use a locked-rotor Amperage draw, etc. You'll see how the Amperage ratings and the HP labels don't match up.
Furthermore, HP ratings are not an ideal measurement of pump performance anyway! Pump flow curves, which measure flow per metre of head pressure are a far more reliable method of measuring pump performance, especially with the advent of variable-speed DC motors.
Basically the labels can appear to be very different in regards to the pump's actual HP rating.

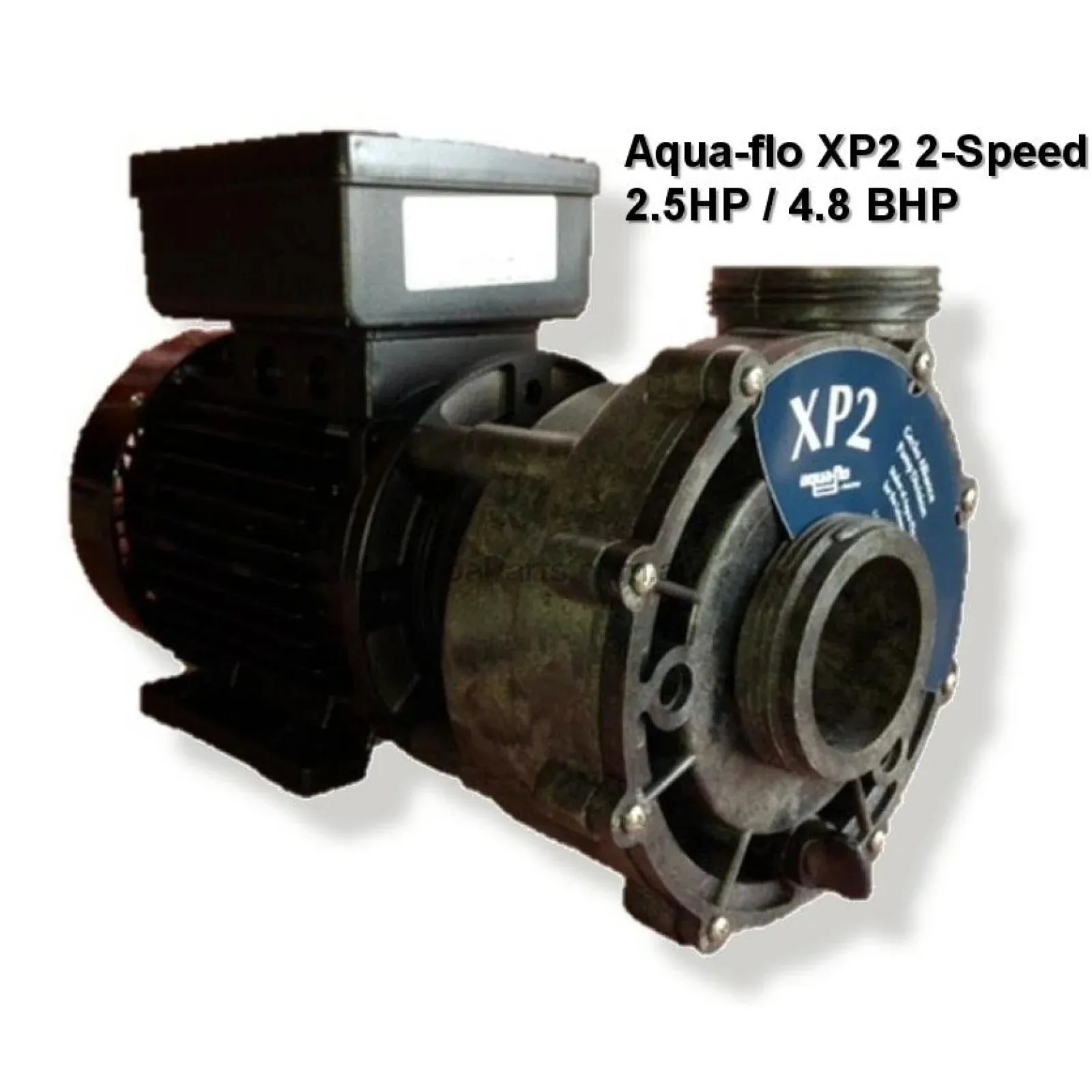

Examples: Some Balboa Pumps marked "4HP" is actually a 2HP pump in Australian terms. Some Aquaflo Pumps labelled as 4.8BHP are 2.5HP in Australian terms.
